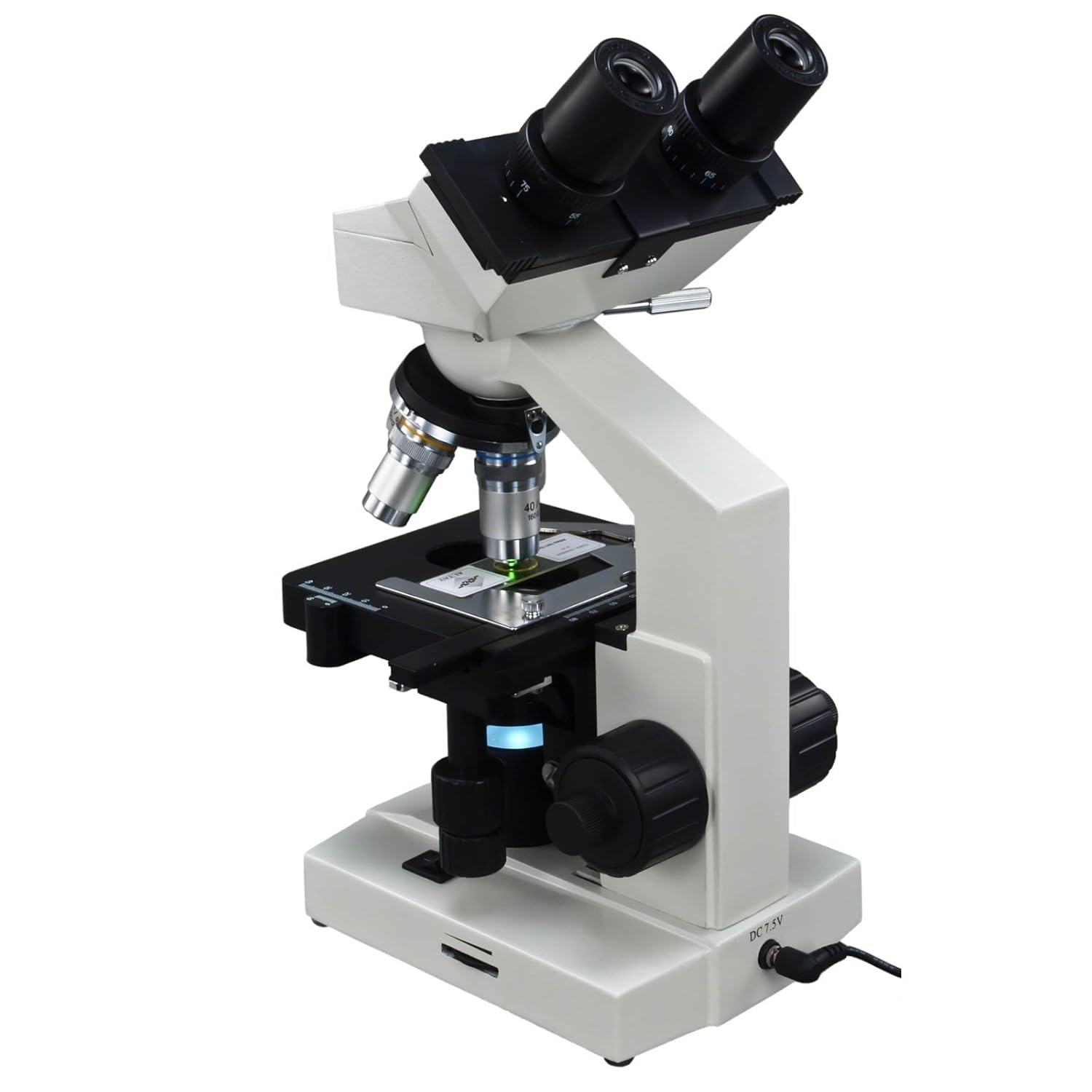

OMAX 40X-2500X Lab Binocular Compound LED Microscope with Double Layer Mechanical Stage and Digital Camera M82EZ-C02

Overview

• Light Source Type : LED
• Model Name : M82EZ
• Material : Metal
• Color : Black, Silver, White
• Real Angle of View : 45 Degrees
• Magnification Maximum : 2500 x
• Voltage : 7.5 Volts
• Brand : OMAX
• Objective Lens Description : Achromatic
• Power Source : Corded Electric

About this item

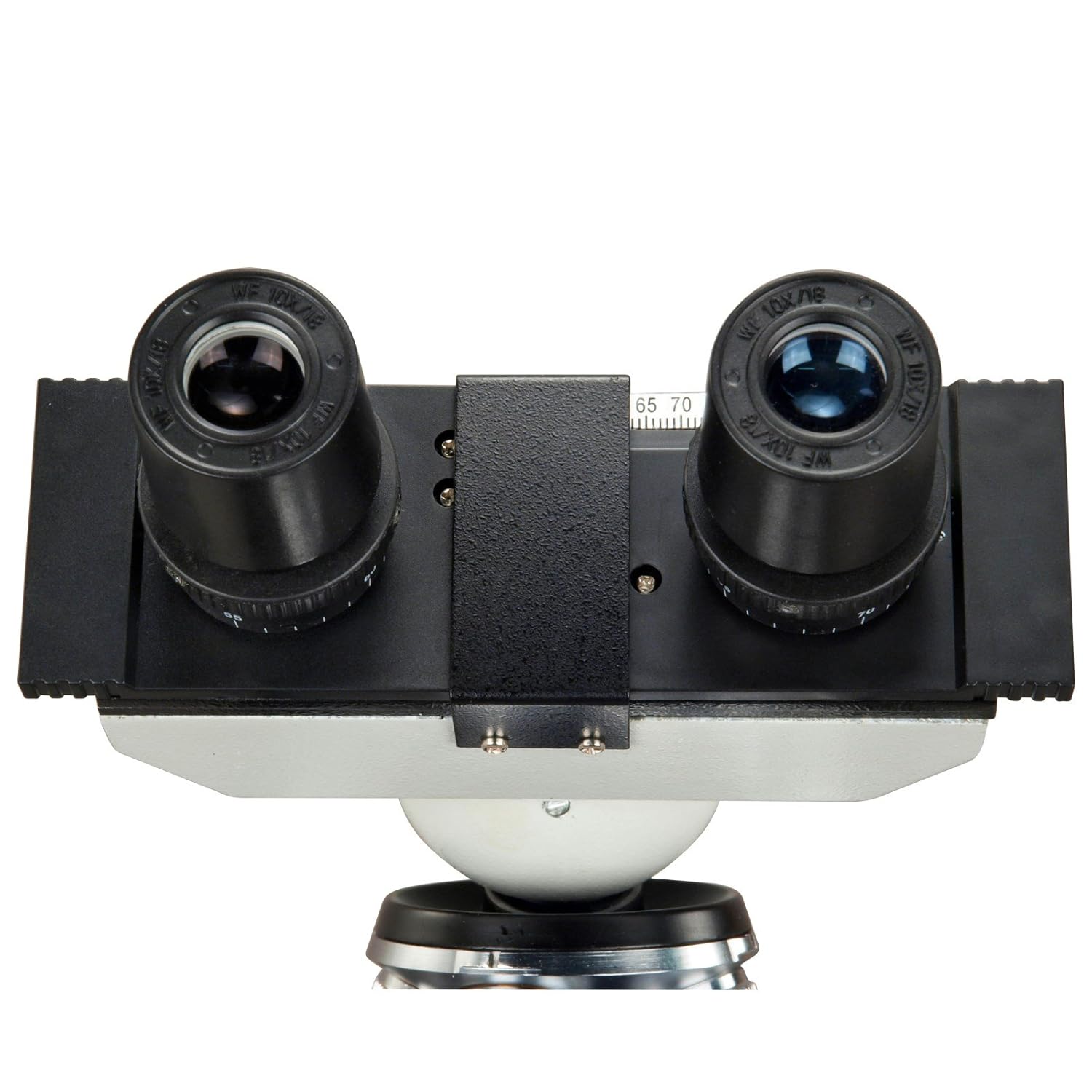

• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eye tubes
• Nosepiece: revolving quadruple; Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable
• Focus adjustment: Coaxial coarse and fine knobs on both sides; All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved) - Input: 100-240VAC, 50/60Hz, 0.5A Max - Output: DC7.5V, 1000mA

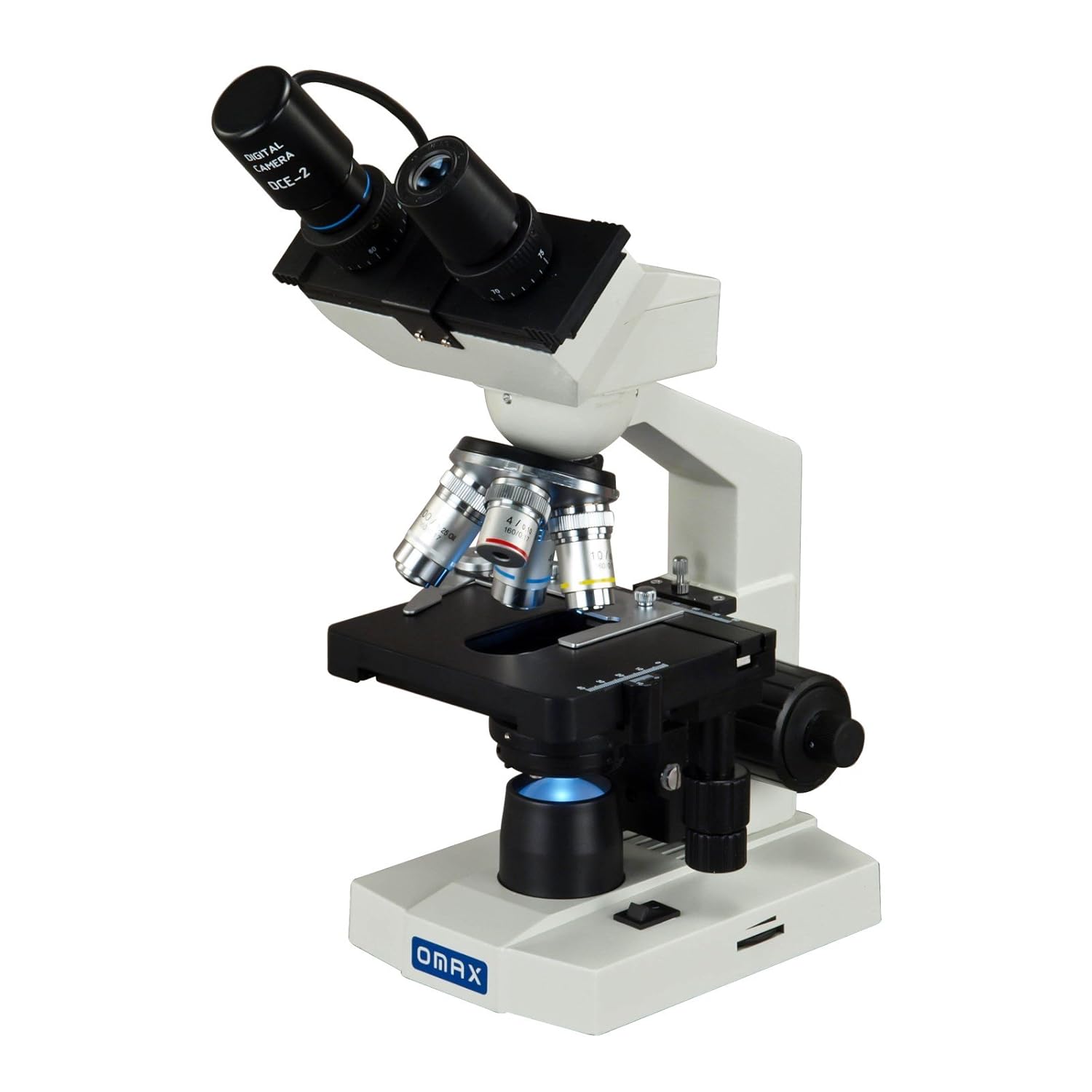

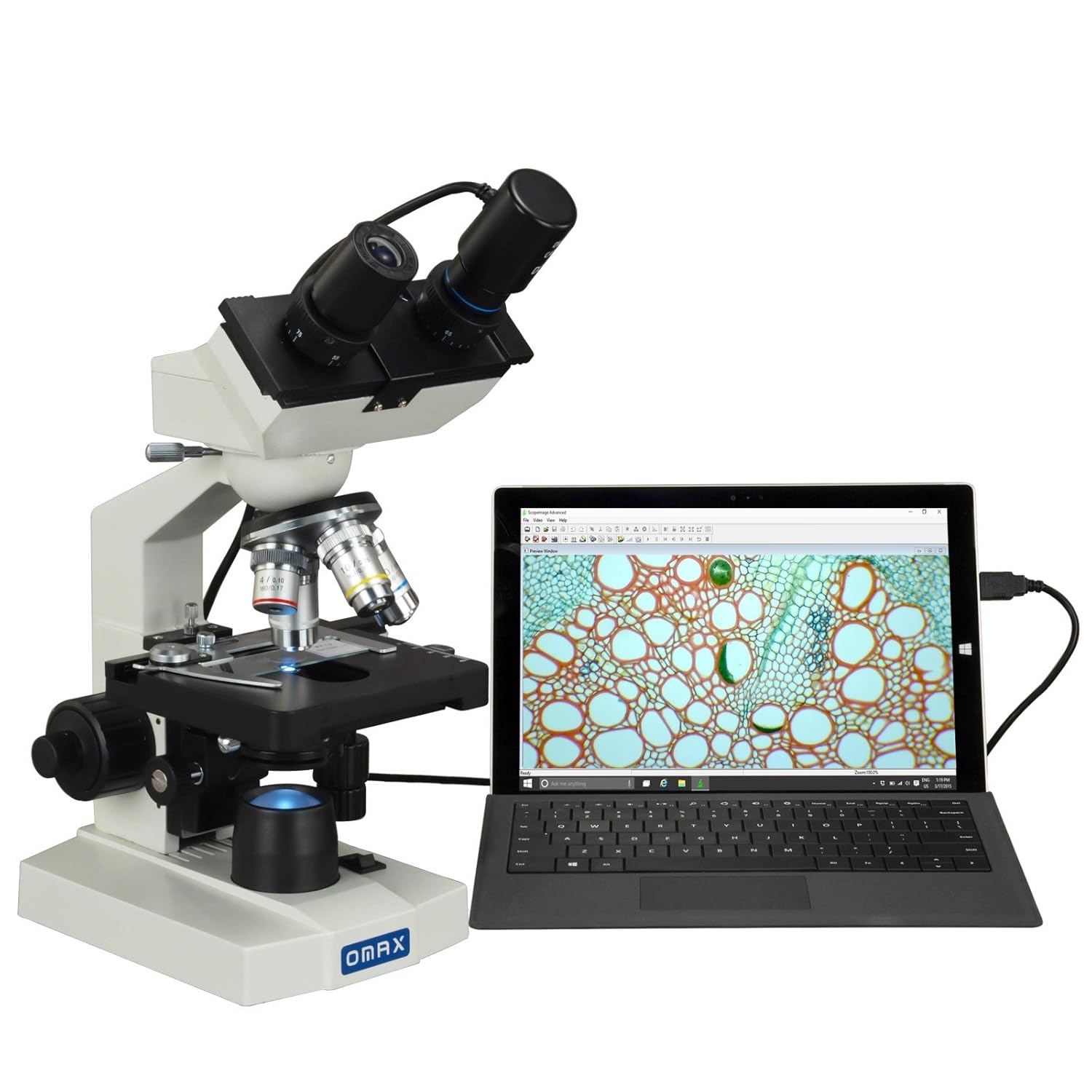

• Digital camera: - true color 640 x 480 pixels - 0.45X reduction lens to get larger field of view - Software compatible with Windows XP/Vista/7/8/10, and Mac OS - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
• 5-year warranty against manufacturing defects
