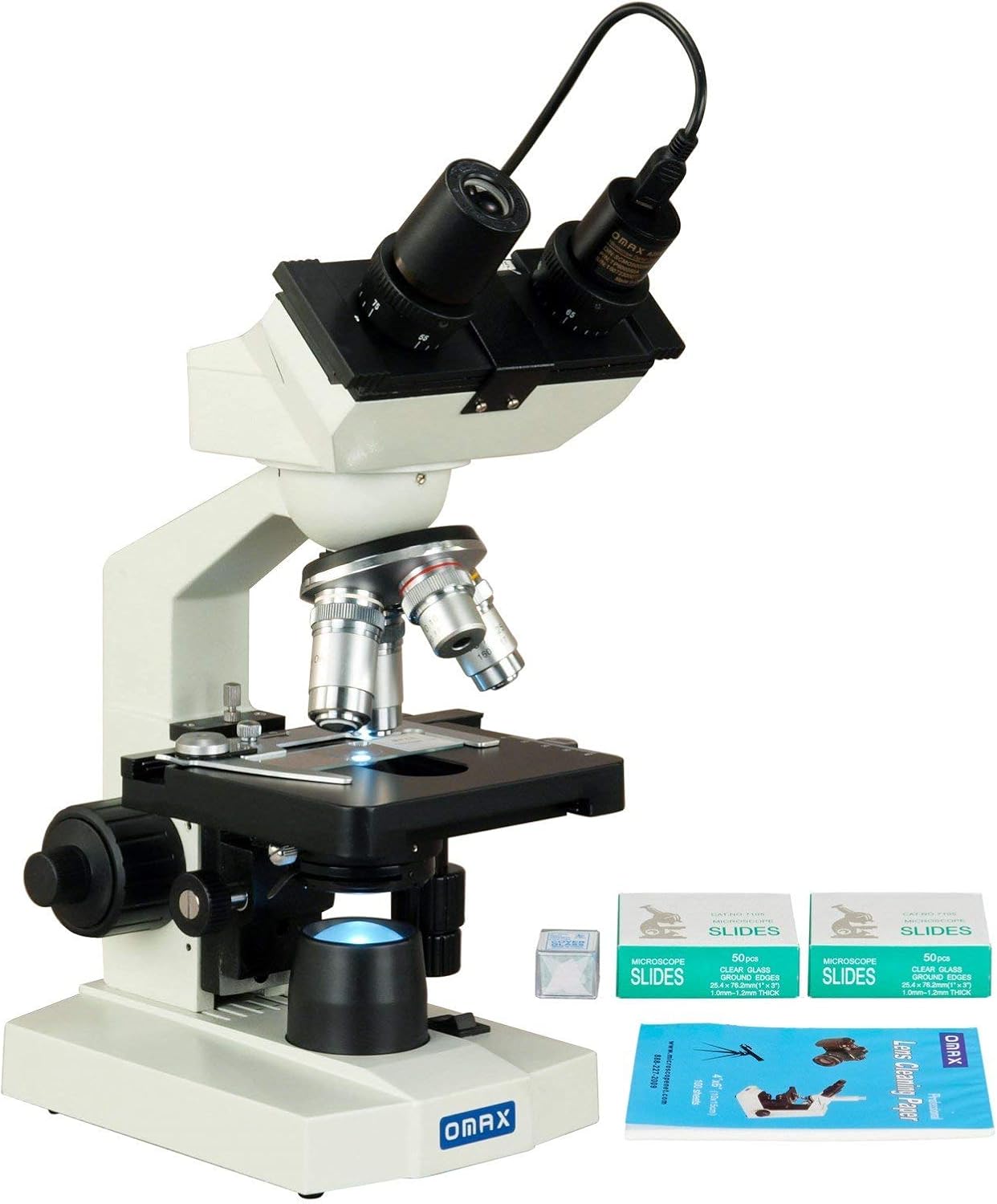

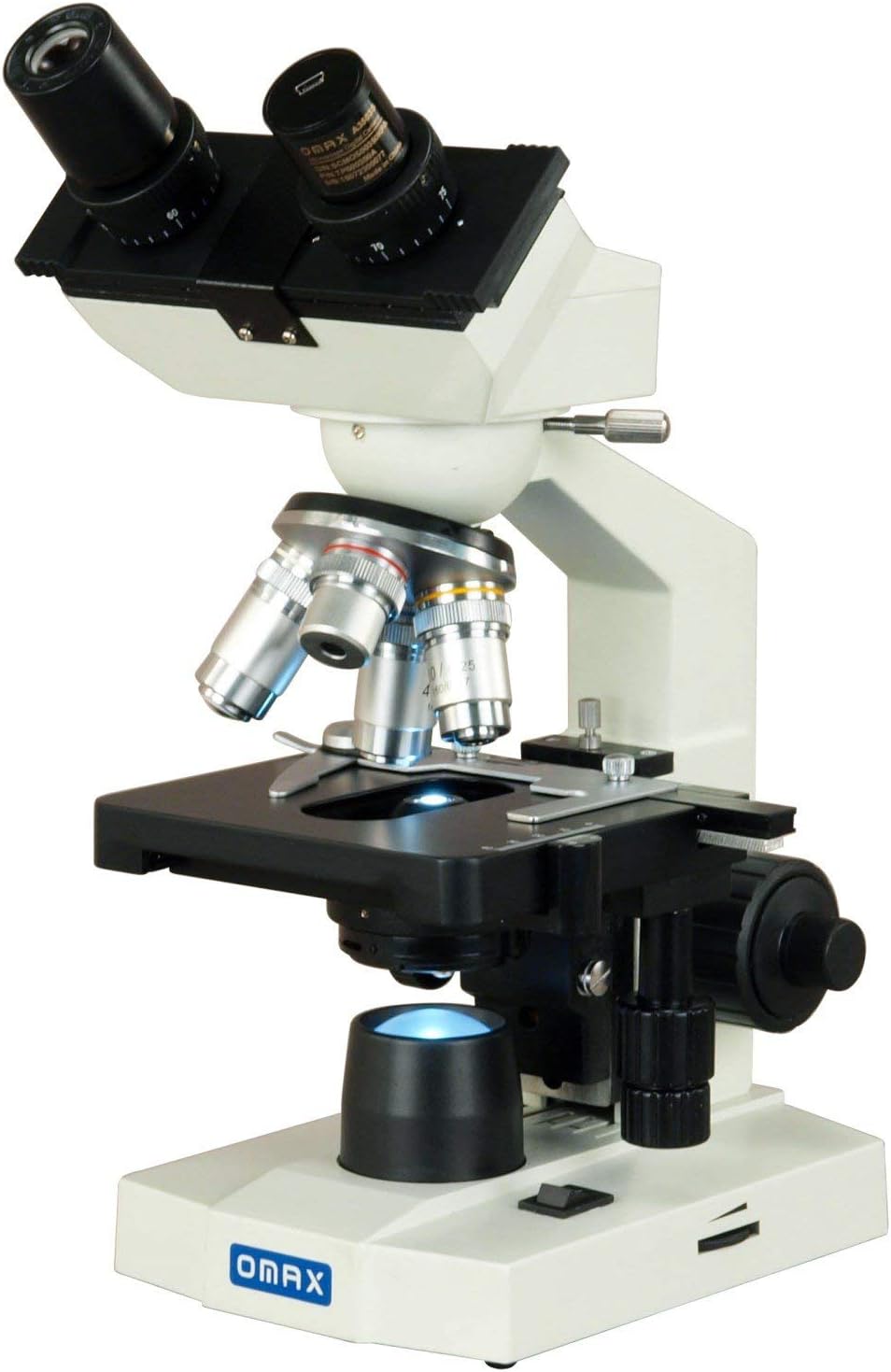

OMAX 40-2500X LED Digital Binocular Compound Microscope 1.3MP Camera + Blank Slides + Covers + Lens Paper

Overview

• Light Source Type : LED
• Material : Glass
• Real Angle of View : 30 Degrees
• Magnification Maximum : 2500 x
• Item Weight : 10 Pounds
• Voltage : 240 Volts
• Brand : OMAX
• Objective Lens Description : Achromatic
• Power Source : Corded Electric
• UPC : 670541485934

About this item

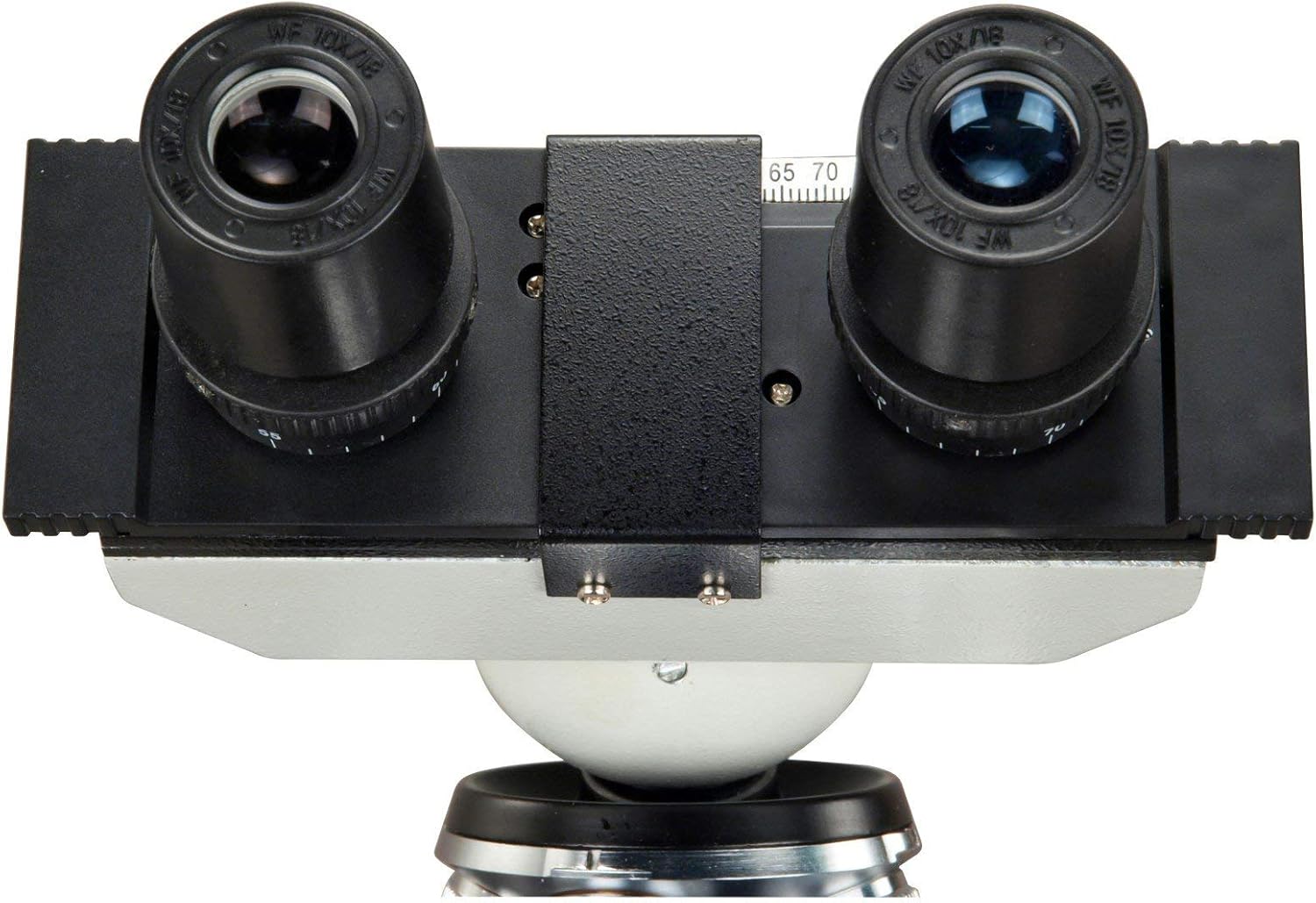

• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustment 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple
• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustment 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple
• Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: widefield WF10X/18 and WF25X; Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling binocular; Interpupillary distance: sliding adjustment 2-3/16inch ~ 2-15/16inch (55~75mm); Diopter: adjustable on both eyepiece tubes; Nosepiece: revolving quadruple
• Stage: double layer X-Y mechanical stage with scales, size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage X-Y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser: NA1.25 Abbe condenser with iris diaphragm and filter holder, rack and pinion adjustment; Illumination: transmitted, LED light, intensity adjustment
• Focus adjustment: coaxial coarse and fine knobs on both sides; Stage upward moving lock protects objectives and slides; All metal mechanical components; 100-piece blank slides with 100-piece covers and 100-sheet lens cleaning paper included; Power supply: AC/DC adapter, 100V-240V (UL approved)

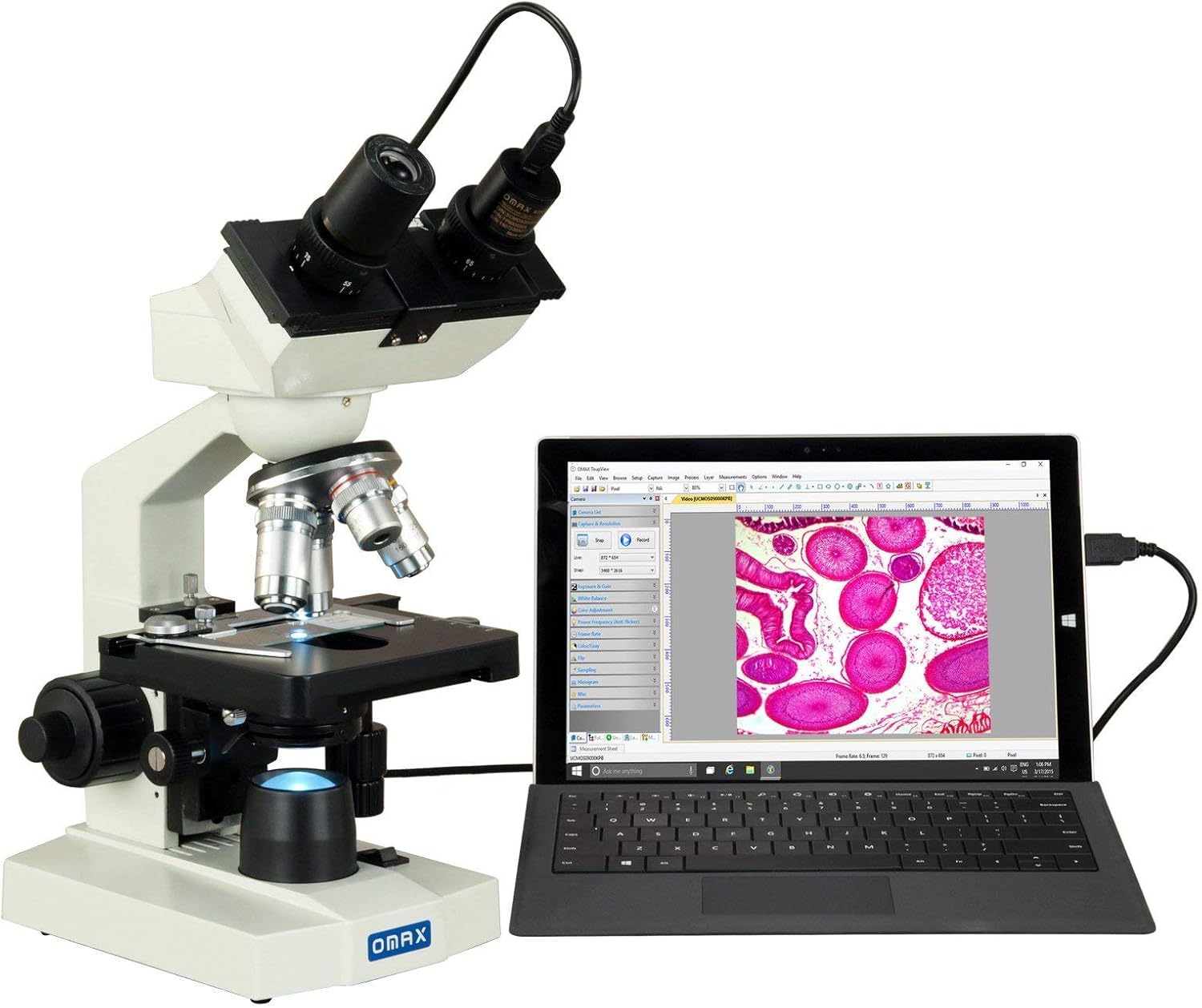

• Digital camera: - True color 1280x1024 pixels (1.3MP) - Frame speed: 15fps at 1280x1024, 26fps at 640x512, 50fps at 320x256 - Software compatible with Windows and Mac OS X operating systems - Offers capturing still images, stitching, EDF, video recording and measurement functions - USB cable included
• 5-year warranty against manufacturing defects
